Do you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer Rental) for a

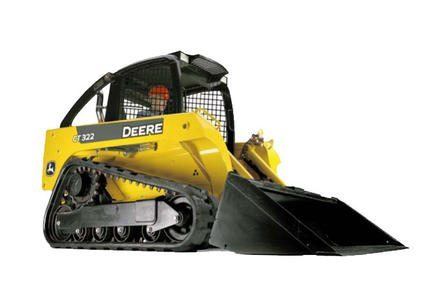

commercial or residential project? If so, consider the John Deere CT322. If you’re
looking for amazing stability on slopes and superior lifting ability, a CT322 rental might
be your best bet.
Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?
- Compact Track Loaders (Rubber Track Skid Steer) provide superior stability and are
excellent for working on slopes with uneven terrain or surfaces with loose gravel, mud
or soft ground. (Places a skid steer with tires would likely get stuck).
- The CT322 tracks distribute the loader’s weight evenly (at 5.1 psi) minimizing
ground pressure. Result? Minimal damage to sensitive surfaces and under-structure such
as soil, lawns, and pipes.
- No flat tires…
Power: The CT322’s 4 cylinder engine delivers 66 HP (vs. 68 HP for the
CT315) allowing you to carry loads of up to 2200 lbs. (vs. 1900 lbs. for the 319D). The
CT322’s tipping load is 6,400 lbs. (vs. 5,600 lbs. for the

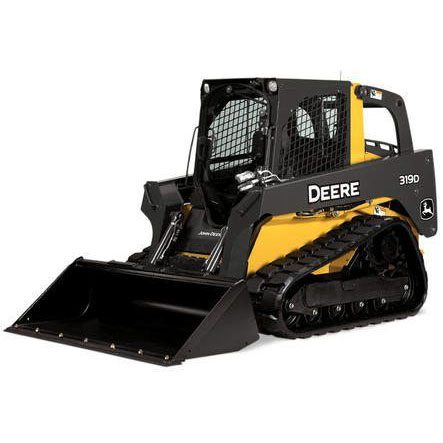

John Deere 319D
Compact Track Skid Steer Loader Rental).
Visibility: Industry-leading 360-degree visibility provides enhanced
productivity and safety.
Superior bucket angle: The 45-degree dump angle allows the bucket to empty
all content (including sticky material).
Comfort: The John Deere CT322’s sculptured high back seat will help
you keep productivity high.
What can you do with a John Deere CT322 Compact Track Loader Rental (Rubber Track
Skid Steer Rentals)?
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Snow removal
- Remove debris from construction sites
- Fence pole installation
- Sod removal
- Clear land and load rubbish bins
- Plant trees
- Remove stumps
- Load pickup trucks, hoppers and spreaders
- Grade and level driveways
- Load sand and gravel
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our
Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance
items, fuel levels, and much more.
Selected Dimensions
| A. Length w/ Bucket |
10.5 ft in |
3195 mm |
| B. Width Over Tracks |
6 ft in |
1816 mm |
| C. Height to Top of Cab |
6.4 ft in |
1951 mm |
| E. Ground Clearance |
9.6 in |
244 mm |
| F. Length w/o Bucket |
8.5 ft in |
2591 mm |
| G. Clearance at Max Lift and Dump |
7.6 ft in |
2306 mm |
| H. Reach at Max Lift and Dump |
2.7 ft in |
808 mm |
Undercarriage
| I. Track Gauge |
4.9 ft in |
1496 mm |
Engine
| Make |
John Deere |
| Model |
4024T |
| Gross Power |
66 hp |
49.2 kw |
| Net Power |
62 hp |
46.2 kw |
| Power Measured @ |
2800 rpm |
| Displacement |
149 cu in |
2.4 L |
| Number of Cylinders |
4 |
| Aspiration |
Turbocharged |
Operational
| Operating Weight |
8305 lb |
3767 kg |
| Fuel Capacity |
18 gal |
68 L |
| Operating Voltage |
12 V |
| Alternator Supplied Amperage |
70 amps |
| Max Speed - low range |
5.5 mph |
8.9 km/h |
| Max Speed - high range |
8.5 mph |
13.8 km/h |
Undercarriage
| Ground Pressure |
5.1 psi |
35.2 kPa |
| Number of Track Rollers per Side |
4 |
| Width of Track |
12.6 in |
320 mm |
| Track Gauge |
4.9 ft in |
1496 mm |
Loader
| Operating Load |
2178.2 lb |
988 kg |
| Tipping Load |
6400 lb |
2903 kg |
| Breakout Force |
6050 lb |
2744.2 kg |
Hydraulic
| Pump Flow |
19 gal/min |
72 L/min |
| Relief Valve Pressure |
3450 psi |
23786.9 kPa |
Dimensions
| Width Over Tracks |
6 ft in |
1816 mm |
| Length w/ Bucket |
10.5 ft in |
3195 mm |
| Length w/o Bucket |
8.5 ft in |
2591 mm |
| Height to Top of Cab |
6.4 ft in |
1951 mm |
| Ground Clearance |
9.6 in |
244 mm |
| Clearance at Max Lift and Dump |
7.6 ft in |
2306 mm |
| Reach at Max Lift and Dump |
2.7 ft in |
808 mm |
| Turning Radius from Center - inc bucket |
78.9 in |
2004 mm |
