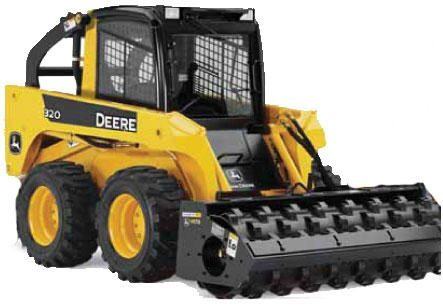

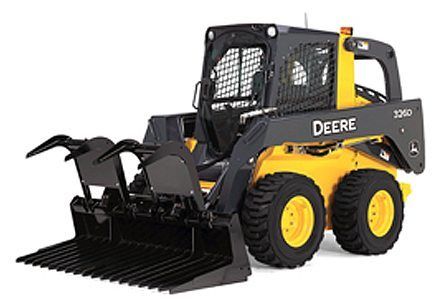

Need to rent a payloader for a commercial or residential project that can carry more weight than a John Deere 318D skidsteer? If tight spaces are not an issue, then the increased power and load capacity of a John Deere 320D payloader Rental might be the way to go.
Powerful: The 320D payloader’s Turbocharged 2.4L diesel engine delivers 69 HP (vs. 61 for the John Deere 318D payloader Rental), and allows you to carry loads of up to 2000 lbs (vs. 1850 lbs. for the 318D). (And the 320D’s Tipping Load is 4000 lbs. vs. 3,800 lbs. for the 318D.)
Visibility: As with the John Deere 318D payloader, the 320D’s superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters).
Superior bucket angle: As with the 318D, the 320D’s 40-degree dump angle allows the bucket to empty all content (including sticky material).
Comfort: As with the 318D, the 320D’ sculptured high back seat will help you keep productivity high.
Reliability: When you rent a payloader like the John Deere 320D you don’t have to worry about performance and reliability. As an example, the 320D’s heavy‐duty drive chains never need adjusting and the battery is maintenance free.
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance items, fuel levels, and much more.
|A. Length with Bucket||10.5 ft in||3195 mm|
|B. Width Over Tires||5.8 ft in||1773 mm|
|C. Height to Top of Cab||6.4 ft in||1951 mm|
|D. Wheelbase||3.5 ft in||1074 mm|
|E. Ground Clearance||9.6 in||244 mm|
|F. Length w/o Bucket||8.5 ft in||2591 mm|
|G. Clearance at Max Lift and Dump||7.5 ft in||2290 mm|
|H. Reach at Max Lift and Dump||28.1 in||714 mm|
|Gross Power||66 hp||49.2 kw|
|Net Power||62 hp||46.2 kw|
|Power Measured @||2800 rpm|
|Displacement||149 cu in||2.4 L|
|Number of Cylinders||4|
|Operational Weight||6435 lb||2918.9 kg|
|Fuel Capacity||16 gal||60.6 L|
|Max Speed||6.8 mph||10.9 km/h|
|Tire Size||12x16.5 10 PR SKS|
|Operating Voltage||12 V|
|Alternator Supplied Amperage||70 amps|
|Operating Load Rating||1950 lb||884.5 kg|
|Tipping Load||3900 lb||1769 kg|
|Breakout Force||5500 lb||2494.8 kg|
|Bucket Capacity||0.59 yd3||0.45 m3|
|Pump Flow Capacity||19 gal/min||72 L/min|
|Relief Valve Pressure||3450 psi||23786.9 kPa|
|Length with Bucket||10.5 ft in||3195 mm|
|Length w/o Bucket||8.5 ft in||2591 mm|
|Width Over Tires||5.8 ft in||1773 mm|
|Height to Top of Cab||6.4 ft in||1951 mm|
|Clearance at Max Lift and Dump||7.5 ft in||2290 mm|
|Wheelbase||3.5 ft in||1074 mm|
|Ground Clearance||9.6 in||244 mm|
|Reach at Max Lift and Dump||28.1 in||714 mm|
|Turning Radius from Center - inc bucket||78.9 in||2004 mm|
