| দিন | সাপ্তাহিক | মাসিক | |
|---|---|---|---|
| নিয়মিত | ৳8,933 | ৳45,520 | ৳1,08,200 |
| কর্পোরেট | ৳8,000 | ৳41,330 | ৳1,01,200 |
|
+ ডেলিভারি রেইট & অপারেটর রেইট
|
|||

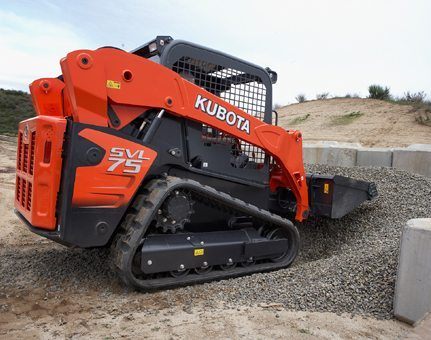

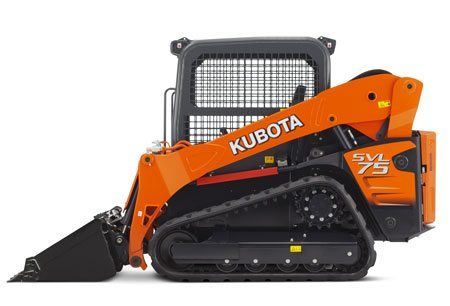

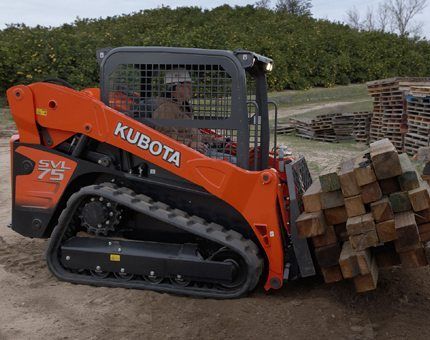

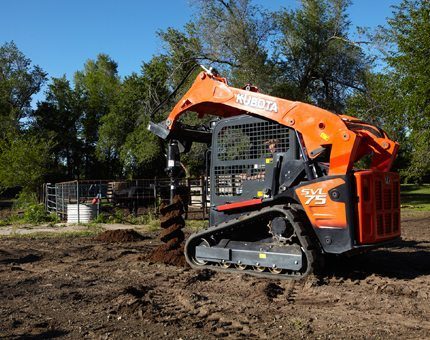

Do you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer) for a commercial or residential project? If so, consider renting the Kubota SVL75 compact track loader. If you’re looking for amazing stability on slopes and superior lifting ability, a Kubota SVL 75 rental might be your best bet.
Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?
Power: The SVL75’s 4 cylinder engine delivers 74.3 HP allows you to carry loads of up to 2,300 lbs. or 1043 kg (vs. 2,295 lbs. for the John Deere 323D Compact Track Skid Steer Loader Rental). The SVL 75’sTipping Load is 6,570 lbs. (vs. 6,175 lbs. for the John Deere 323D).
Visibility: Industry-leading 360-degree visibility provides enhanced
productivity and safety.
Superior bucket angle: The 42-degree dump
angle allows the bucket to empty all content (including sticky material).
Comfort: The Kubota SVL75’s sculptured high back seat will help you
keep productivity high.
What can you do with a Kubota SVL 75 Compact Track Loader Rental (Rubber Track Skid Steer Rentals)?
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance items, fuel levels, and much more.
| Specification | Detail | ||
|---|---|---|---|
| Model | |||
| Model Name | SVL75-2 | ||
| Engine | |||
| Make | Kubota | ||
| Model | V3307-CR-TE4 | ||
| Type | Diesel | ||
| EPA Rating | Tier 4 | ||
| Cooling | Liquid | ||
| Aspiration | Turbocharged | ||
| Cylinders | Four | ||
| Bore and stroke | 3.7 in. (94 mm) x 4.72 in. (120 mm) | ||
| Displacement | 203.3 cu. in. (3331 cc) | ||
| Horsepower | |||
| Engine gross @ rpm | 74.3 HP (55.4 kW) @ 2400 RPM | ||
| Cold weather start aid | Standard | ||
| Air filter | Dual element | ||
| Fuel System | |||
| Fuel type | Diesel | ||
| Fuel / water separator | Standard | ||
| Fuel filter | Spin-on type | ||
| Fluid Capacities | |||
| Fuel tank capacity | 24.6 gal. (93 L) | ||
| Capacity | Hydraulics: 9.2 gal. (34.8 L) | ||
| Chassis, Axle and Brakes | |||
| Bucket breakout force | 6204 lbf. (2814 kgf) | ||
| Chassis type | Rigid mount undercarriage | ||
| Parking brake | Wet disc | ||
| Drive Train/Transmission | |||
| Number of ranges | Two | ||
| Travel Speed | |||
| Low range | |||
| None | 4.7 mph. (7.5 km/h) | ||
| High range | |||
| None | 7.1 mph (11.5 km/h) | ||
| Drive Train/Transmission | |||
| Maximum traction force | 9678 lbf. (4390 kgf) | ||
| Ground contact pressure | 4.7 psi. | ||
| Hydraulic System | |||
| Auxiliary hydraulic flow | 18.8 gpm (71.2 lpm) | ||
| Oil cooler | Standard | ||
| Lift arms | Vertical path | ||
| Electrical | |||
| Gauges | Fuel, Temperature | ||
| Dimensions | |||
| Operating weight | |||
| None | 9039 lbs. (4100 kg) | ||
| Overall height | |||
| Top of ROPS | 82 in. (2083 mm) | ||
| Overall length | 141 in. (3576 mm) | ||
| Overall width | 68.3 in. (1735 mm) | ||
| Length of track on ground | 56.5 in. (1436 mm) | ||
| Ground clearance | 11.7 in. (296 mm) | ||
| Angle of departure | 31.5º | ||
| Tracks | |||
| Overall width | |||
| Width | 15.0 in. (380 mm) | ||
| 30 ° angle shaped track frame | Standard | ||
| Safety Equipment | |||
| ROPS | Certified open cab | ||
| FOPS | Certified open cab | ||
| Seat belts | Standard | ||
| Parking brakes | Wet disc | ||
| Grab handles for entry / exit | Standard | ||
| Lights | 2 front & rear working | ||
| Back-up alarm | Standard | ||
| Safety starting system | Standard | ||
| Options | |||
| Cab | Enclosed, pressurized | ||
| 3” retractable seatbelt | Yes | ||
| Optional lights | Strobe, Beacon, Tail-light | ||
| Hydraulic quick connect of attachments | Yes | ||
| Allied attachments; buckets, auger | Yes | ||
| Hydraulic breaker | Yes | ||
| Loader Specifications | |||
| Lift arms | Vertical lift path | ||
| Rated flow | 18.8 gpm (71.2 lpm) | ||
| Maximum pressure | 3555 psi. (250 kgf/cm²) | ||
| (A) Max. Lift height to bucket pivot pin | |||
| Standard | 119 in. (3025 mm) | ||
| (D) Reach at max. Lift height | |||
| Standard | 41.7 in. (1060 mm) | ||
| (E) Max. Dump angle | |||
| Standard | 40º | ||
| Loader Dimensional Specifications | |||
| (G) Bucket roll-back angle | |||
| At carry position | 27º | ||
| Loader Operational Specifications | |||
| Tipping Load. 35% | 2300 lbs. (1043 kg) | ||
| Tipping Load. 50% | 3285 lbs. (1490 kg) | ||
| Tipping Load. straight | 6570 lbs. (2980 kg) | ||
| Lift capacity | |||
| None | 4881 lbs. (2214 kg) | ||
| Loader Bucket Specifications | |||
| Standard bucket | |||
| Width | 72 in. (1829 mm) | ||
