| দিন | সাপ্তাহিক | মাসিক | |
|---|---|---|---|
| নিয়মিত | ৳39,345 | ৳1,80,320 | ৳5,15,200 |
| কর্পোরেট | ৳31,150 | ৳1,57,500 | ৳5,00,200 |
|
+ ডেলিভারি রেইট & অপারেটর রেইট
|
|||

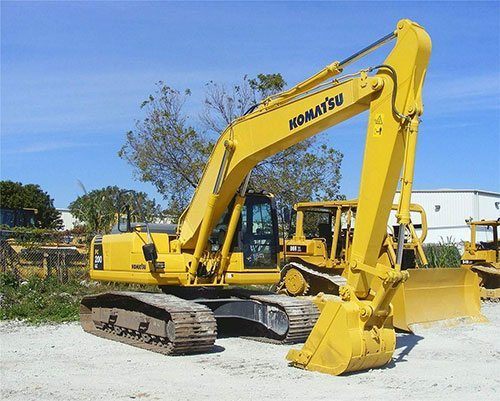

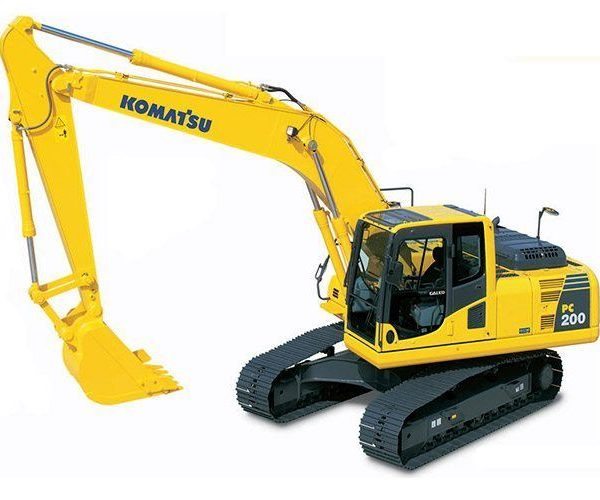

Komatsu’s PC 200 LC Hydraulic Excavator Rentals with thumb available from RentCTG
If you need to rent an excavator today that will provide optimal performance and productivity for your construction project then a Komatsu PC 200 LC w Hydraulic thumb is a great choice. It’s maximum digging depth of 20.9 feet and digging reach of 30.2 feet make it a versatile tool for all size commercial, residential or industrial projects. If you need to rent a similar sized excavator (slightly heavier) with a near zero tail swing profile then try renting the Komatsu PC 228 USLC.
Demolition ready excavator rentals: when you rent a Komatsu PC 200 LC-8 from RentCTG, it will come equipped with full cab guarding and a hydraulic thumb.
Power: with a low emission engine, the powerful turbocharged and air-to-air aftercooled Komatsu SAA6D107E-1 engine provides 110 kW 148 HP(net). This excavator engine is EPA Tier 3 and EU stage 3A emissions certified, without sacrificing power or machine productivity.
Compact: a Komatsu PC 200 LC rental features a conventional tail swing profile providing increased lift capacity over the sides and front. Renting a conventional swing excavator is perfect for your projects whether on roadways, bridges, urban areas, or anywhere space is limited.
Visibility: The PC 200 LC visibility provides you with increased productivity and safety.
Low Operation Noise: The dynamic noise is lowered by 2 dB compared with the previous models realizing a low noise operation.
Versatile: With multiple attachment options, the Komatsu PC 200 LC excavator is an extremely flexible construction tool.
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance items, fuel levels, and much more.
| Model | Komatsu SAA6D107E-1 | |
| Type | Water-cooled, 4-cycle, direct injection | |
| Aspiration | Turbocharged and aftercooled | |
| Number of cylinders | 6 | |
| Bore | 4.21'' | 107 mm |
| Stroke | 4.88'' | 124 mm |
| Piston displacement | 408 in³ | 6.69 ltr |
| Horsepower | ||
| SAE J1995 : Gross | 155 HP | 116 kW |
| ISO 9249/SAE J1349 : Net | 148 HP | 110 kW |
| Rated rpm | 2000 rpm | |
| Fan drive type | Mechanical | |
| Governor | All-speed control, electronic. | |
| EPA Tier 3 emissions ready. |
Type - HydrauMind (Hydraulic Mechanical Intelligence New Design) closed-center system with load sensing valves and pressure compensated valves
| Number of selectable working modes | 5 | |
| Main pump: | ||
| Type | Variable displacement piston type | |
| Pumps for | Boom, arm, bucket, swing, and travel circuits | |
| Maximum flow | 116 U.S. gal/min | 439 ltr/min |
| Supply for control circuit | Self-reducing valve | |
| Hydraulic motors: | ||
| Travel | 2 x axial piston motor with parking brake | |
| Swing | 1 x axial piston motor with swing holding brake | |
| Relief valve setting: | ||
| Implement circuits | 5,400 psi | 380 kgf/cm²/ 37.3 MPa |
| Travel circuit | 5,400 psi | 380 kgf/cm² / 37.3 MPa |
| Swing circuit | 4,190 psi | 295 kgf/cm²/ 28.9 MPa |
| Pilot circuit | 470 psi | 33 kgf/cm² / 3.2 MPa |
| Hydraulic cylinders: | ||
| Number of cylinders | Bore x Stroke x Rod Diameter | Bore x Stroke x Rod Diameter |
| Boom / 2 | 5.1" x 52.5" x 3.5" | 130 mm x 1334 mm x 90 mm |
| Arm / 1 | 5.3" x 58.7" x 3.7" | 135 mm x 1490 mm x 95 mm |
| Bucket / 1 | 4.5" x 44.1" x 3.2" | 115 mm x 1120 mm x 80 mm |
| Steering control | Two levers with pedals | |
| Drive method | Hydrostatic | |
| Maximum drawbar pull | 40,120 lb | 178 kN / 18200 kg |
| Gradeability | 35° | 70% |
| Maximum travel speed: (Auto-Shift) | ||
| High | 3.4 mph | 5.5 km/h |
| Mid | 2.5 mph | 4.1 km/h |
| Low | 1.9 mph | 3.0 km/h |
| Service brake | Hydraulic lock | |
| Parking brake | Mechanical disc brake |
| Drive method | Hydrostatic | |
| Swing reduction | Planetary gear | |
| Swing circle lubrication | Grease-bathed | |
| Service brake | Hydraulic lock | |
| Holding brake/Swing lock | Mechanical disc brake | |
| Swing speed | 12.4 rpm | |
| Swing torque | 49,907 ft lbs | 6900 kg.m |
| Center frame | X-frame | |
| Track frame | Box-section | |
| Seal of track | Sealed track | |
| Track adjuster | Hydraulic | |
| Number of shoes | 49 each side | |
| Number of carrier rollers | 2 each side | |
| Number of track rollers | 9 each side |
| Fuel tank | 105.7 U.S. gal | 400 ltr |
| Coolant | 5.4 U.S. gal | 20.4 ltr |
| Engine | 6.1 U.S. gal | 23.1 ltr |
| Final drive | 0.9 U.S. gal | 3.3 ltr |
| Swing drive | 1.7 U.S. gal | 6.6 ltr |
| Hydraulic tank | 35.7 U.S. gal | 135 ltr |
Operating weight, including 5700 mm / 18'8" one-piece boom, 2925 mm / 9'7" arm, SAE heaped 1.02 m³ / 1.34 yd³ bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
| Triple-Grouser Shoes | Operating Weight: | Ground Pressure |
| 28" / 700 mm | 46,643 lb 21157 kg |
5.48 psi 0.43 kg/cm² |
| 31.5' / '800 mm | 47,260 lb 21437 kg |
4.86 psi 0.38 kg/cm² |
