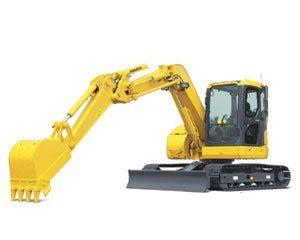

Known by those at the Komatsu company as the Komatsu PC 78UU-8 Compact Hydraulic Excavator,
this midi excavator rental is an excellent choice for jobs that require a bigger machine
without going all the way to a full heavy excavator. That’s what midi excavators like
this one are for – versatility.
The PC78 UU is ideal for smaller spaces
A highly maneuverable boom and a very large work envelope allows for minimal track movement
and ensures efficiency at low operating costs. The size of this excavator rental is ideal
for jobs that require careful movement so as not to disturb surroundings, such as a busy
residential or urban environment.
The Komatsu PC78 UU rental is tailored for an urban environment
“Zero Swing” of the Komatsu technology allows the boom to be flexible, letting it
get to hard-to-reach corners and work around senstive spots with pipes, foundation and
wiring with ease and efficiency.
What can you do with a Komatsu PC78 UU midsize excavator rental?
- Backfill and dig trenches
- Dig out sewage pipes or electrical conduits
- Break concrete with a hammer attachment
- Prepare ground for landscaping
- Remove debris from construction sites
- Fence pole installation
- Tree planting
- Stump removal
- Load Sand and Gravel
- Brush cutting
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our
Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance
items, fuel levels, and much more.
Specifications
Engine
| Model |
Komatsu SAA4D95LE-5 |
| Horsepower, Gross - SAE J1995 (kW) |
43 |
| Horsepower, Net - ISO 9249 (kW) |
41 |
| Horsepower, Net - SAE J1349 (kW) |
41 |
| Rated RPM |
1950 |
| Fan drive method |
Mechanical |
| Displacement (litre) |
3.26 |
| Number of cylinders |
4 |
Weights
| Operating weight - total (kg) |
7960 |
| Bucket weight – KGA GP (kg) |
207 |
| Quick hitch weight – KGA (kg) |
105 |
Operation / Application
| Boom size (m) & type |
3.749 Standard |
| Arm size (m) & type |
1.720 Standard |
| Bucket size – KGA standard GP (m3) |
0.21 |
| Arm crowd force – ISO (kgf) |
3960 |
| Bucket crowd force – ISO (kgf) |
6250 |
| Digging depth – maximum (mm) |
4230 |
| Digging reach – maximum (mm) |
6400 |
| Maximum reach @ ground level (mm) |
6240 |
| Swing speed (rpm) |
1340 |
| Related information |
Komatsu Genuine Attachments available include
a dynamic cast quick hitch and a selection of bucket solutions. |
Driveline and Swing
| Drawbar pull, maximum (kg) |
6820 |
| Gradeability (%) |
|
| Travel speeds (km/h) |
2.9/5.0 |
| Swing speed (rpm) |
10.0 |
| Related information |
The travel speed control has an automatic
function. |
Undercarriage
| Shoe size & type |
450mm Roadliner |
| Related information |
Hydraulic System
| Type |
HydrauMind System |
| Selectable work modes |
5 |
| Economy sub-mode selections |
4 |
| Main pump type |
Variable displacement, axial piston |
| Maximum flow rate (ltr/min) |
|
| Related information |
The attachment mode has a Power
or Economy mode selection. |
Dimensions (transport position)
| Length, overall (mm) |
6060 |
| Track length on ground (mm) |
2235 |
| Track gauge (mm) |
1870 |
| Overall track width (mm) |
2320 |
| Overall height (mm) |
2730 |
| Ground clearance (mm) |
|
| Related information |
Overall height is at transport position. |
