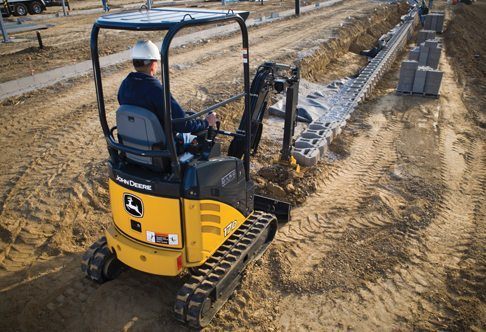

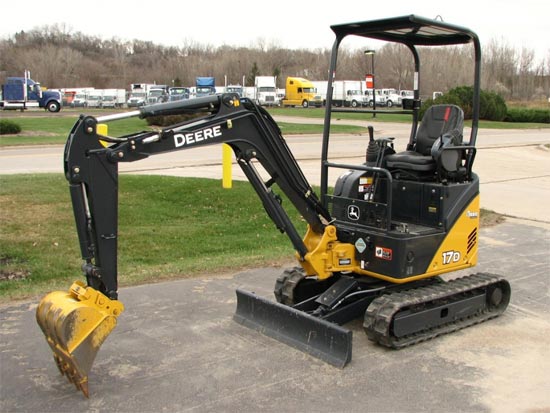

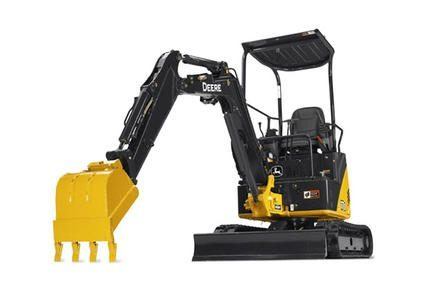

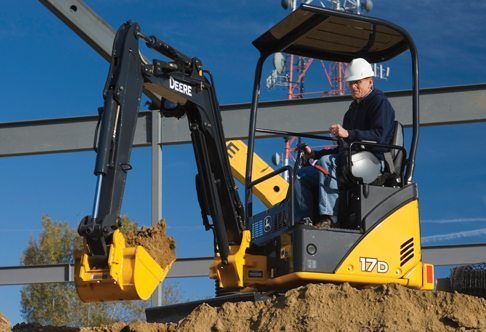

If you need to rent a Mini Excavator for a commercial or residential project that involves
close-quarters work, the compact and powerful John Deere 17D Mini Excavator might be the
perfect choice. It’s maximum digging depth of 7 feet 1 inch and digging reach of 12
feet 10 inches make it a versatile tool. The next step up from the John Deere 17D is a John Deere 27D Mini
Excavator Rental
Power: The 17D’s high drawbar pull (pulling force) delivers plenty of
power for backfilling trenches or transporting materials.
Compact: The John Deere 17D mini excavator’s independent-swing boom
and 360-degree rotation allows you to work in areas where shovels used to be the only
option.
Visibility: The 17D’s unobstructed visibility provides you with
increased productivity and safety.
Versatile: With multiple attachment options, the 17D is an extremely
flexible tool.
What can you do with a John Deere 17D Mini Excavator rentals?
- Tear down a fence
- Dig up sewage pipes or electrical conduit
- Break up concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Fence pole installation
- Plant trees
- Remove stumps
- Load sand and gravel
- Brush Cutting
We provide quick delivery on all payloader rentals, mini-excavator rentals, and compact
track loader rentals throughout the Greater Seattle Region.
*** equipped excavator rentals will relay error codes, cautions, maintenance
items, fuel levels, and much more.
Boom/Stick Option
| A. Shipping Length of Unit |
11.8 ft in |
3590 mm |
| C. Shipping Height of Unit |
7.9 ft in |
2400 mm |
| I. Max Cutting Height |
11.7 ft in |
3560 mm |
| J. Max Loading Height |
8.3 ft in |
2530 mm |
| M. Max Digging Depth |
7.1 ft in |
2170 mm |
Dimensions
| B. Width to Outside of Tracks |
4.2 ft in |
1280 mm |
| D. Length of Track on Ground |
4 ft in |
1210 mm |
| E. Ground Clearance |
0.54 ft in |
165 mm |
| G. Height to Top of Cab |
7.9 ft in |
2400 mm |
| H. Tail Swing Radius |
2.2 ft in |
675 mm |
| O. Counterweight Clearance |
1.4 ft in |
435 mm |
Undercarriage
| F. Track Gauge |
3.4 ft in |
1050 mm |
| N. Shoe Size |
9.1 in |
230 mm |
Engine
| Make |
Yanmar |
| Model |
3TNV70 |
| Net Power |
14.8 hp |
11 kw |
| Power Measured @ |
2400 rpm |
| Displacement |
52.1 cu in |
0.85 L |
| Aspiration |
Natural |
| Number of Cylinders |
3 |
Operational
| Operating Weight |
4173 lb |
1892.8 kg |
| Fuel Capacity |
5.2 gal |
19.7 L |
| Cooling System Fluid Capacity |
0.71 gal |
2.7 L |
| Hydrauilc System Fluid Capacity |
5.3 gal |
20.1 L |
| Engine Oil Capacity |
0.82 gal |
3.1 L |
| Alternator Supplied Amperage |
40 amps |
| Hydraulic Pump Flow Capacity |
13.5 gal/min |
51.1 L/min |
Swing Mechanism
Undercarriage
| Shoe Size |
9.1 in |
230 mm |
| Ground Pressure |
4.1 psi |
28.3 kPa |
| Max Travel Speed |
2.7 mph |
4.3 km/h |
| Track Gauge |
3.4 ft in |
1050 mm |
Boom/Stick Option (HEX) 1
| Boom/Stick Option (HEX) 1 |
3'1" (930mm) arm |
| Shipping Height of Unit |
7.9 ft in |
2400 mm |
| Shipping Length of Unit |
11.8 ft in |
3590 mm |
| Max Digging Depth |
7.1 ft in |
2170 mm |
| Max Cutting Height |
11.7 ft in |
3560 mm |
| Max Loading Height |
8.3 ft in |
2530 mm |
Boom/Stick Option (HEX) 2
| Boom/Stick Option (HEX) 2 |
3'8" (1130mm) arm |
| Shipping Height of Unit |
7.9 ft in |
2400 mm |
| Shipping Length of Unit |
11.9 ft in |
3640 mm |
| Max Digging Depth |
7.8 ft in |
2370 mm |
| Max Cutting Height |
12 ft in |
3660 mm |
| Max Loading Height |
8.6 ft in |
2630 mm |
Dimensions
| Width to Outside of Tracks |
4.2 ft in |
1280 mm |
| Height to Top of Cab |
7.9 ft in |
2400 mm |
| Ground Clearance |
0.54 ft in |
165 mm |
| Counterweight Clearance |
1.4 ft in |
435 mm |
| Tail Swing Radius |
2.2 ft in |
675 mm |
| Length of Track on Ground |
4 ft in |
1210 mm |
