| দিন | সাপ্তাহিক | মাসিক | |
|---|---|---|---|
| নিয়মিত | Tk 7,745 | Tk 40,850 | Tk 1,29,000 |
| কর্পোরেট | Tk 7,229 | Tk 39,100 | Tk 1,24,000 |
+ Delivery Rate & Operator Rate
|

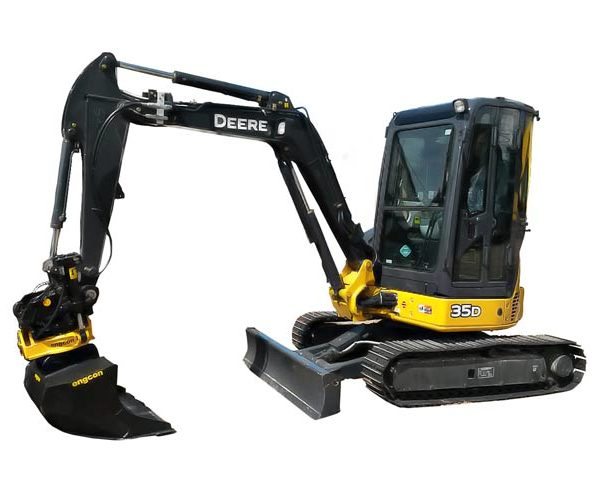

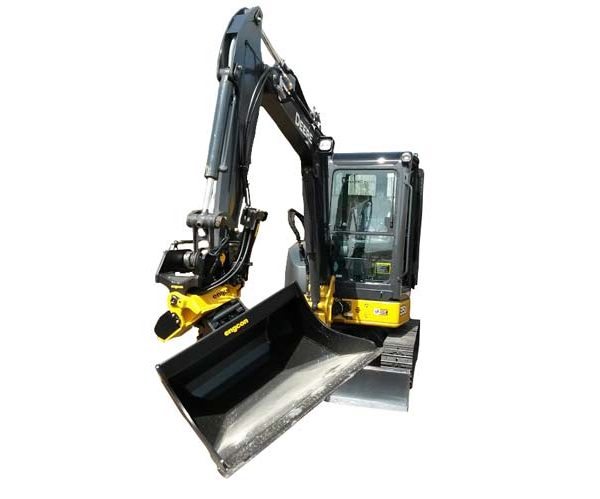

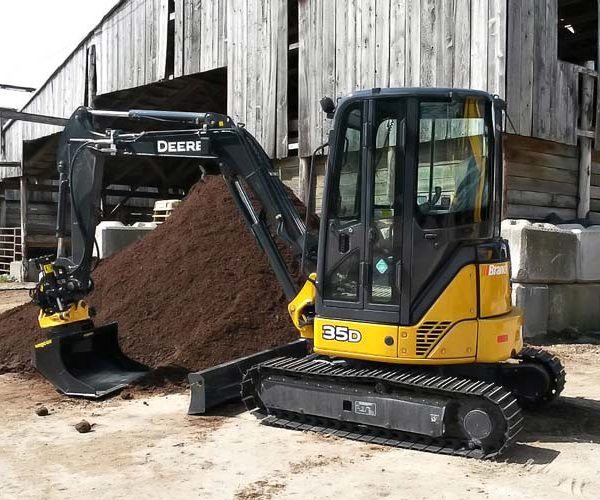

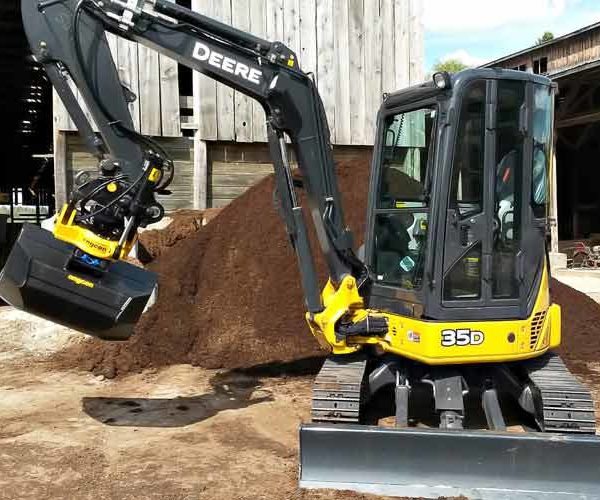

Renting a John Deere 35D mini excavator equipped with the Engcon EC05B Tiltrotator will allow you to perform maneuvers that aren’t possible when you rent a standard mini excavator. The Engcon Rototilt will help you save time and money. Plus, not only will it improve productivity, but it will also enhance the quality and detail of your end product.
You’ll see that when you rent the Engcon Rototilt attachment it transforms your mini excavator into a robust precision tool. The perfect combination for residential and commercial landscaping or earth moving projects.
When you combine the multiple mini excavator attachments available for the John Deere 35D with the Engcon Tiltrotator you have the ability to make intricate movements all within tight spaces without compromising strength. An all in one efficient solution for your next earth moving project.
See what other people are saying about the Engcon TiltRotator
Water & Sewage Pipes
Railway
Electrical
Construction Sites
Roads
Landscaping
Golf Course Construction
More information on Engcon Tiltrotators
We provide quick delivery on all payloader rentals, mini-excavator rentals, and compact track loader rentals throughout the Greater Seattle Region.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance items, fuel levels, and much more.
| Emission Rating | Interim Tier 4 / EU Stage 3B |
| Engine Make / Engine Model | Yanmar / 3 TNV 88 |
| Net Power, kW (hp) @ Rated rpm | 21.3 (28.6) @ 2400 |
| Gross Power, kW (hp) | not published |
| Displacement, L (cu in) | 1.606 (100.4) |
| Pump Type | Variable Displacement + Gear |
| Total Pump Flow, L/m (gpm) | 80.2 (21.2) |
| Normal Relief Pressure, kPa (psi) | not published |
| Auxilliary Hyd. Max Flow Rate, L/m (gpm) | 66.2 (17.5) |
| Track Width, mm (in) | 300 (12) |
| Overall Track Length, mm (ft) | 2110 (6 ' 11 '') |
| Ground Clearance, mm (in) | 280 (11) |
| Width Over Std Track, mm (ft) | 1740 (5 ' 9 '') |
| Ground Pressure, Std. Track, kPa (psi) | 31.7 (4.6) |
| Travel speed 1, kph (mph) | 2.8 (1.7) |
| Travel speed 2, kph (mph) | 4.4 (2.8) |
| Travel speed 3, kph (mph) | not published |
| Travel speed 4, kph (mph) | not published |
| Gradeability, % | --- |
| Gradeability, deg | --- |
| Max. Drawbar Pull, kN (lbf) | not published |
| Blade Width, mm (ft) | 1740 (5 ' 9 '') |
| Blade Height, mm (ft) | 370 (14.6) |
| Blade Max Lift Above Grd. Level, mm (in) | 370 (14.6) |
| Blade Max Lift Below Grd. Level, mm (in) | 390 (15.4) |
| Standard Arm, mm (ft in) | 1350 (4 ' 4 '') |
| Max. Digging Height w/Std Arm, mm (ft) | 4870 (16 ' ) |
| Max. Digging Depth w/Std Arm, mm (ft) | 3050 (10 ' ) |
| Max. Digging Reach w/Std Arm, mm (ft) | 5310 (17 ' 1 '') |
| Max. Digging Reach @ G.L. w/Std Arm, mm (ft) | not published |
| Max. Dump Height w/Std Arm, mm (ft) | 3490 (11 ' 5 '') |
| Max. Vertical Wall Depth w/Std Arm, mm (ft) | not published |
| Min. Front Swing Radius, mm (ft in) | 2070 (6 ' 9 '') |
| Min Front Swing Radius w/Boom Swing, mm (ft) | --- |
| Boom Swing Angle - left, deg | 72 |
| Boom Swing Angle - right, deg | 62 |
| Lift Cap. Over Front @ 10' G.L. (incl bckt), kg (lb) | 1505 (3135) |
| Lift Cap. Over Side @ 10' G.L. (incl bckt), kg (lb) | 653 (1439) |
| Max Arm Digging Force, kN (lb) | 19.1 (4294) |
| Max Bucket Digging Force, kN (lb) | 27.5 (6182) |
| Tail Swing Radius, mm (ft in) | 870 (2 ' 10 '') |
| Swing Speed, rpm | 9.1 |
| Transport Length, mm (ft) | 4650 (15 ' 3 '') |
| Transport Height, mm (ft) | 2460 (8 ' 1 '') |
| Transport Width, mm (ft) | 1740 (5 ' 9 '') |
| Fuel Tank, L (gal) | 40 (10.6) |
| Hydraulic Reservoir, L (gal) | 32 (8.5) |
| Model | EC05B |
| Weight (Kg) | from 155 |
| Tilt Range | 2x40 |
| Recommended Hydraulic Flow SS5/SS10 (l/min) | 40 |
| Recommended Hydraulic Flow SS9 tilt/rotation (I/min) | 15/30 |
| Max Hydraulic Pressure (MPa) | 22 |
| Standard mountings | s40 s45 |
| Max bucket width recommended by engcon (mm): | 1200 |
| Max tensile stress (kNm) | 45 |
| Base machine weight (t) | 3-5 |
| SAE Operating Weight, kg (lb) | 3520 (7760) |
