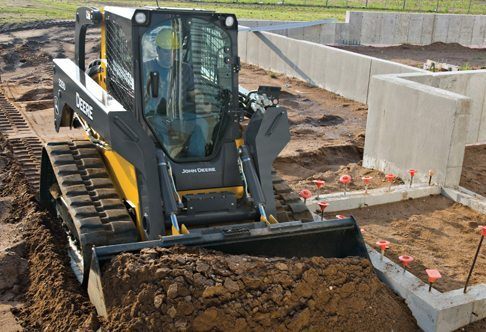

Do you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer) for a commercial or
residential project? If so, consider renting John Deere 329D. If you’re looking for
more power and lifting capacity than the 323D, the John Deere 329D Compact Track Loader
might be your best bet.
Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?
- A Compact Track Loader’s (Rubber Track Skid Steer) superior stability is excellent
for working on slopes with uneven terrain or surfaces with loose gravel, mud or soft
ground. (Places a skid steer would likely get stuck)
- The John Deere 329D tracks distribute the loader’s weight evenly (at 5 psi)
minimizing ground pressure. Result? Minimal damage to sensitive surfaces and
under-structure such as soil, lawns, and pipes.
- No flat tires...
Powerful: The 329D’s 5 cylinder engine delivers 85 HP (vs. 74 HP for
the 323D), allows you to carry loads of up to 2,900 lbs. (vs. 2,295 lbs. for the John Deere 323D
Compact Track Skid Steer Loader Rental). The 329D’sTipping Load is 8,300 lbs.
vs. 7,175 lbs. for the 323D.
Visibility: Industry-leading 360-degree visibility provides enhanced
productivity and safety.
Superior bucket angle: The 45-degree dump angle allows the bucket to empty
all content (including sticky material).
Comfort: The John Deere 329D’s sculptured high back seat will help you
keep productivity high.
What can you do with a John Deere 329D Compact Track Loader Rental (Rubber Track Skid Steer
Rentals)?
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Snow removal
- Remove debris from construction sites
- Fence pole installation
- Sod removal
- Clear land and load rubbish bins
- Plant trees
- Remove stumps
- Load pickup trucks, hoppers and spreaders
- Grade and level driveways
- Load sand and gravel
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our
Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance
items, fuel levels, and much more.
| Emission Rating |
Tier 3 |
| Engine Make / Engine Model |
John Deere / PowerTech E 5030 HT |
| Net Power, kW (hp) @ Rated rpm |
59.6 (80) @ 2000 |
| Gross Power, kW (hp) |
63.4 (85) |
| Net Peak Torque, N-m (lb-ft) |
not published |
| Displacement, L (cu in) |
3 (186) |
| Engine Aspiration |
Turbo. intercooled |
| Fuel Capacity, L (gal) |
111 (29) |
| Standard Pump Flow, L/min (gpm) |
80 (21) |
| Optional High Flow, L/min (gpm) |
125 (33) |
| System Pressure, kPa (psi) |
23787 (3450) |
| Hydraulic power, kW (hp) |
34.3 (46) |
| Optional high flow hydraulic power, kW (hp) |
53.7 (72) |
| SAE Rated Operating Capacity, kg (lb) |
1317 (2900) |
| Tipping Load, standard, kg (lb) |
3765 (8300) |
| Breakout Force Boom, kN (lb) |
20.5 (4600) |
| Breakout Force Bucket, kN (lb) |
46 (10325) |
| Vertical lift geometry |
Yes |
| Maximum Ground Speed, standard, kph (mph) |
10 (6.2) |
| Two Speed Transmission Ground Speed, kph (mph) |
12.6 (7.8) |
| Standard Rubber Track Width mm (in) |
400 (15.8) |
| Ground Pressure, Standard Track, kPa (psi) |
34.3 (5) |
| Track Guage, center to center, mm (in) |
1600 (64) |
| Length with Bucket, mm (in) |
3600 (142) |
| Length Without Bucket, mm (in) |
2990 (118) |
| Width Without Bucket, mm (in) |
2000 (79) |
| Height to ROPS, mm (in) |
2150 (85) |
| Height to Hinge Pin, mm (in) |
3200 (126) |
| Dump Height, mm (in) |
2590 (102) |
| Dump Reach, mm (in) |
1000 (39) |
| Dump Angle, degrees |
45 |
| Bucket Rollback @ ground, degrees |
35 |
| Ground Clearance, mm (in) |
265 (10.4) |
| Angle of Departure, degrees |
32 |
| SAE Operating Weight, kg (lb) |
4917 (10830) |
